Model | APEX

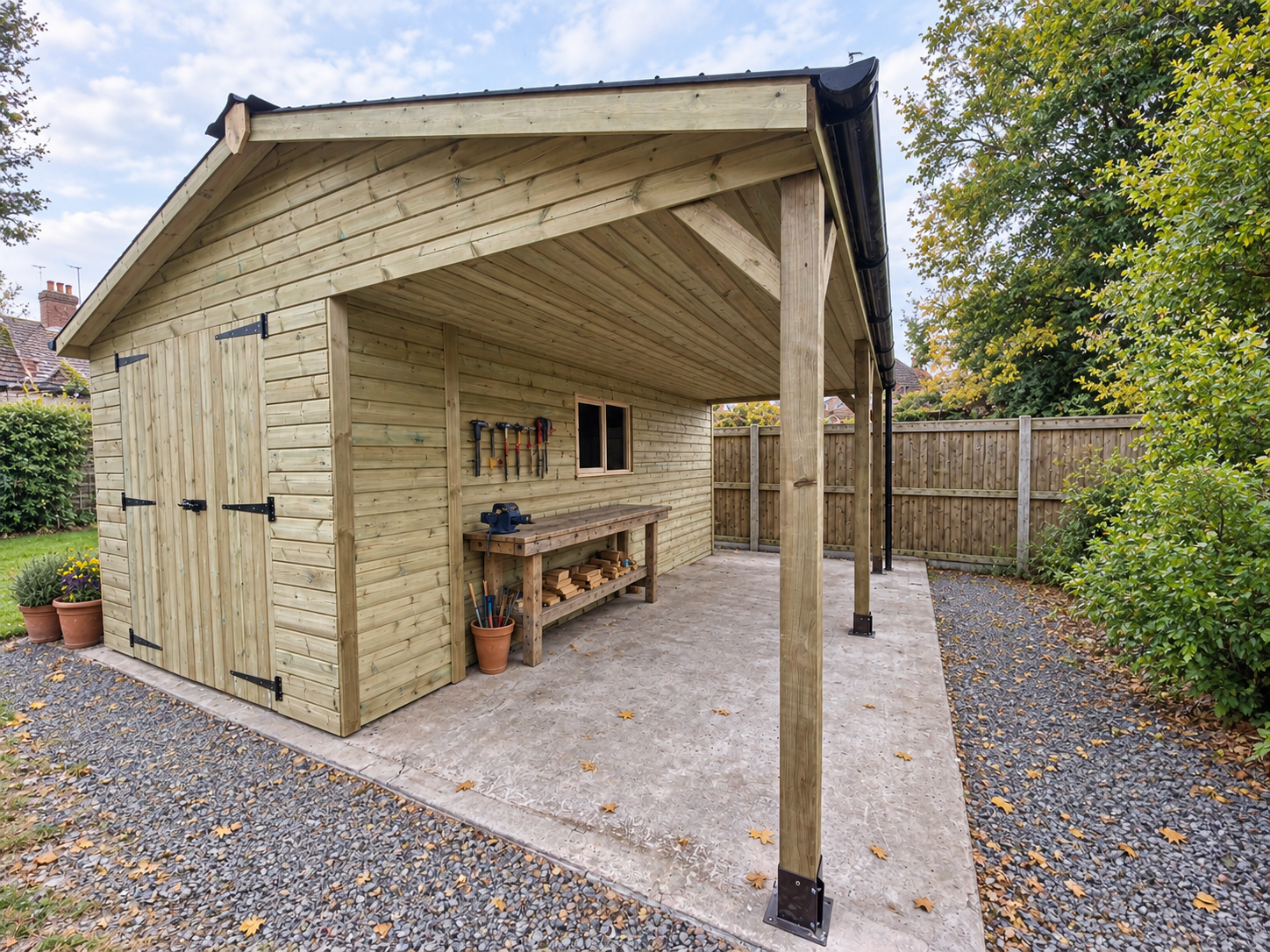

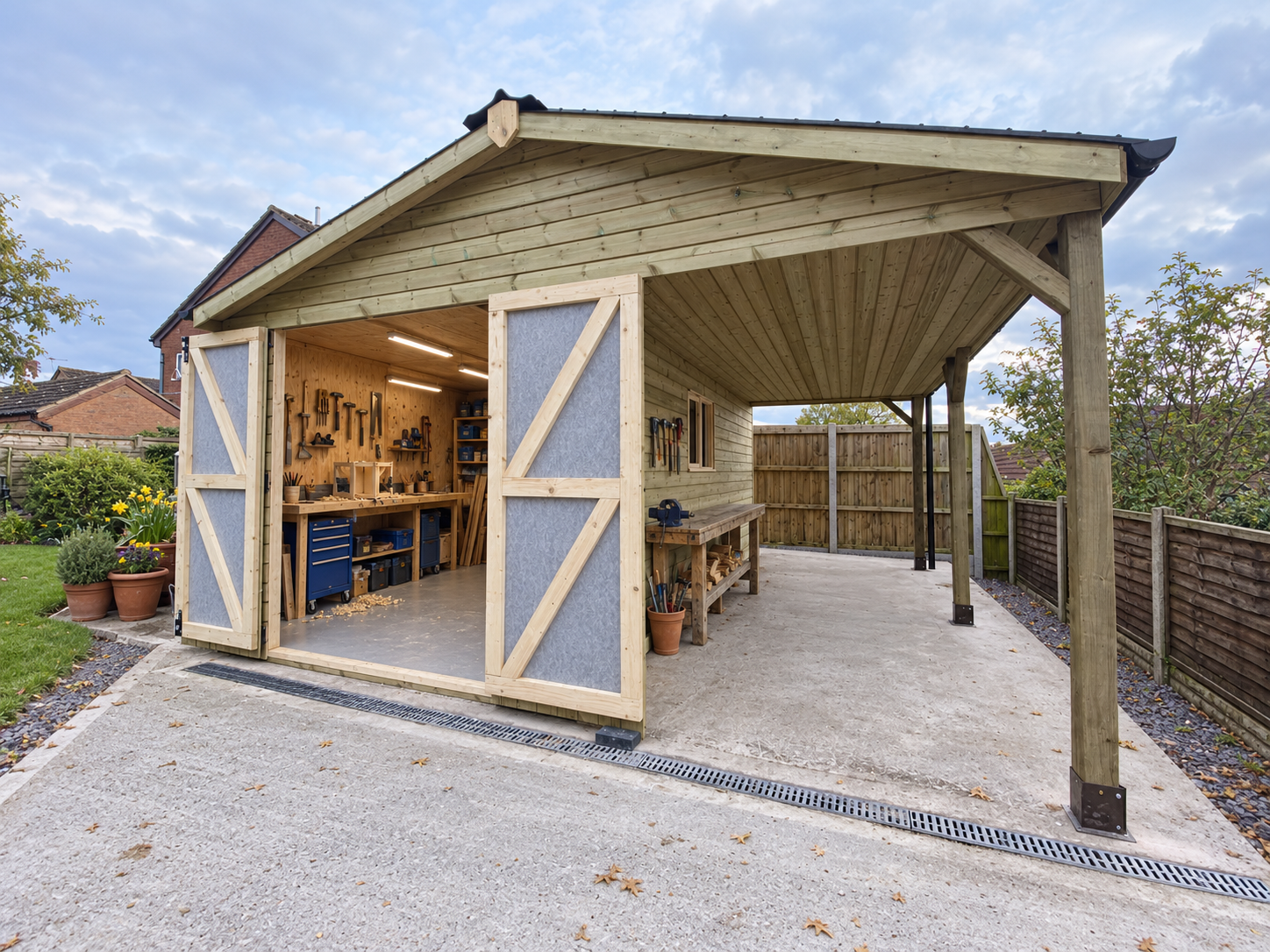

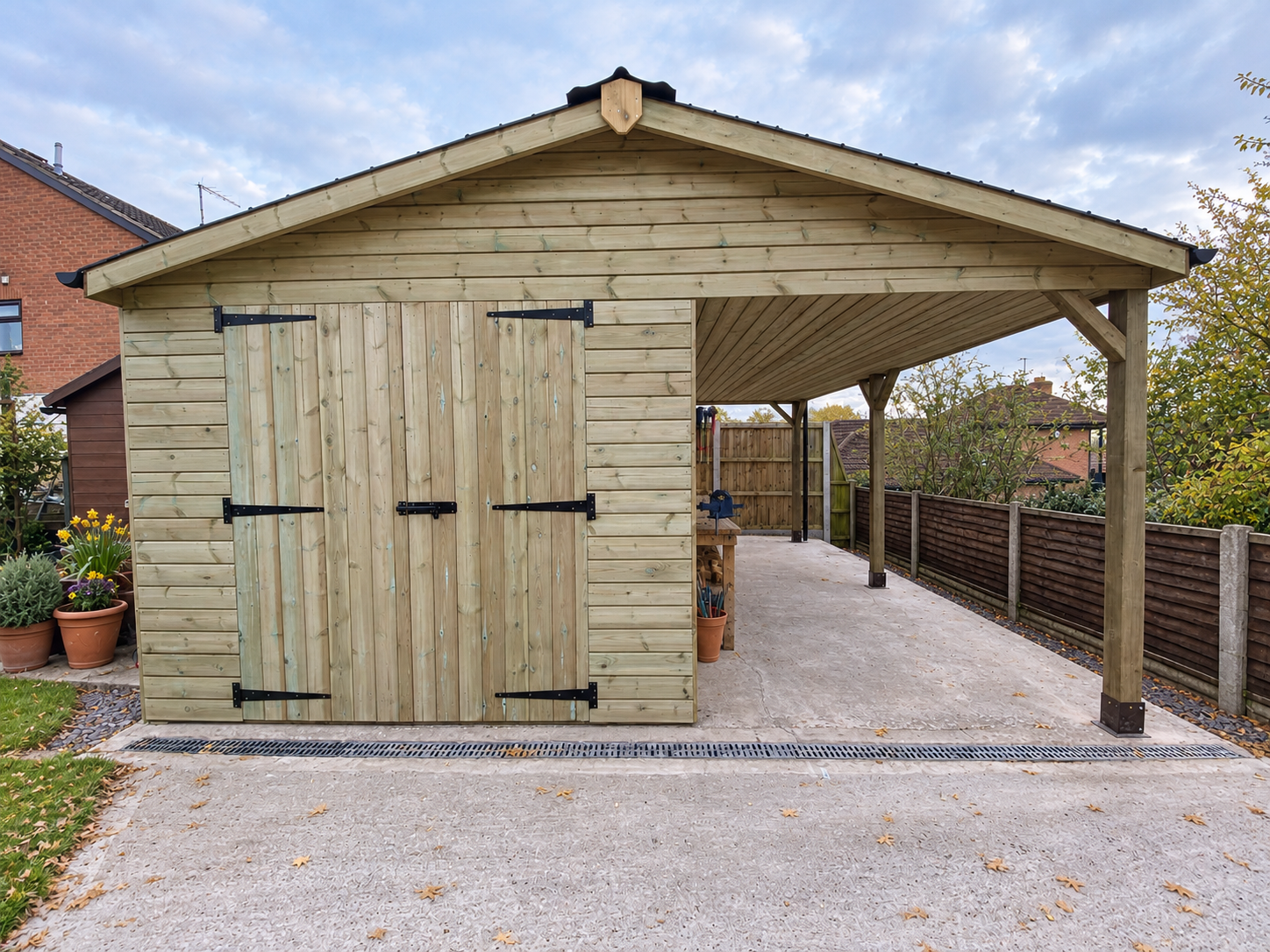

Base unit external footprint size -  2700mm (Gable) x 5400mm Garage with a 2100mm x 5400mm Full side overhang to include matching Redwood under cladding, with 200mm feature gable overhangs.

Height info -  2080mm through doors/eaves - Standard

Highest point to ridge - 3000mm

(Please see below for alternative options).

FRAME - C16 CLS 40mm X 90mm

ROOF - Genuine ONDULINE roof (Sheets, fixings) 15 year guarantee & light weight black plastic coated tin ridge tops to give extra life to roof.

PURLINS - C24/26 4x2inch (Pressure tested dry graded)

FRAMING FIXINGS - Heavy duty twin thread Zinc 100mm fixings

PLINTH/RING BEAM - 60mm x 40mm” High pressure treated Redwood sleepers to ensure maximum life span and substantial floor support.

EXTERIOR CLADDING - Custom SHEDBOX profile  - Imported Scandinavian Redwood Tantalised half-lap - 21mm - Applied with 40mm ring-shank coil nails. 18 points along the clad

WHY REDWOOD? Abundant, renewable and energy-efficient. Redwood is clearly the environmental choice

PLINTH BEARERS - (Ensurers full life of shed by lifting untreated framing timbers off the ground) - Pressure treated red wood ring-bead tailor machined to fit your specific building size. Fully supported floors can now be added to orders with this option selected

GROUND ANCHOR KIT - (Thunder bolts concrete screws secured into the concrete 175mm mm fixings) - Secures building to the concrete floor & now means the building can be damp sealed - Ask for more information. Ground anchor kits are required on all porch/overhang upright posts to ensure position fixture.

ROOF BOARDING (INCLUDED ON ALL ORDERS) - 12mm 2397 x 1197 Kronospan OSB3

HEAVY DUTY OSB FLOOR - Tanalised load bearing support timbers (18mm boarding as standard)

WATERPROOF PANEL MEMBRANE - Made of high density polyethylene fibres for long-term protection against the elements. This durable, lightweight breathable membrane is wind tight and water resistant and designed for use in new build, refurbishment or extension projects. Highly permeable to water vapour – can be fixed directly to insulation (Sd-value: 0.01m). Enhances the airtightness of the construction / Long-term reliability / CE marked / Fully BBA, IAB, and UKAS approved / BBA certificate: 90/2548

FULLY FRAMED HEAVY DUTY DOUBLE GARAGE DOORS (2x1200mm) - Complete with all heavy duty irons inside and out. Galvanised then power-coated in Jet Black

TIMBER WINDOWS - Model WFR2 - x1 - (Machine regulated & morticed jointed) - GLASS NOT INCLUDED

ROOF SEAL KIT - Seals roof sheets to panel tops (eves) Foam inserts that are machined in 1meter lengths to fit the roof profile perfectly. Ideal for keeping heat in and finishing off the overall look.

FLOOR/PLINTH SEAL KIT - Seals your pressure treated plinth to your concrete base. Includes a waterproof gap sealant (clear), gun for application and re-useable sealant edging kit.

HIGH FLOW GUTTER KIT - (High flow Black) Will prevent rain water collecting around the base of the shed thus keeping water damage to a minimum around the base.

SELF BUILD - The building would arrive in pre-fabricated panels with all the materials required to complete and would be delivered by one of our qualified joiners who would go through the full erection process with you. All panels & apex's are tradesman built with exceptional quality and workmanship.

DELIVERY NOT INCLUDED, PLEASE SEE BELOW:

Delivery is charged at £2.50 per mile, one way from our Shropshire workshop to your address. Once you have placed your order you will need to send us a message with your full address, post code, contact telephone number and email address, we will then notify you of the additional delivery charge.

Please be aware that as our workshop is based in Shropshire therefore they may be a surcharge if your location requires our driver to stay overnight due to driving restrictions.

All of our buildings are made to order therefore the lead time from order confirmation to delivery is currently 4 weeks

ALTERNATIVE SPECIFICATION OPTIONS

Building height options:

- 1800mm (EAVES) 2500mm (RIDGE)

- 2080mm (EAVES) 3000mm (RIDGE) - Included with this building

- 2450mm (EAVES) 3350mm (RIDGE)

(If you would like to upgrade your building to any of the above options please contact us).
