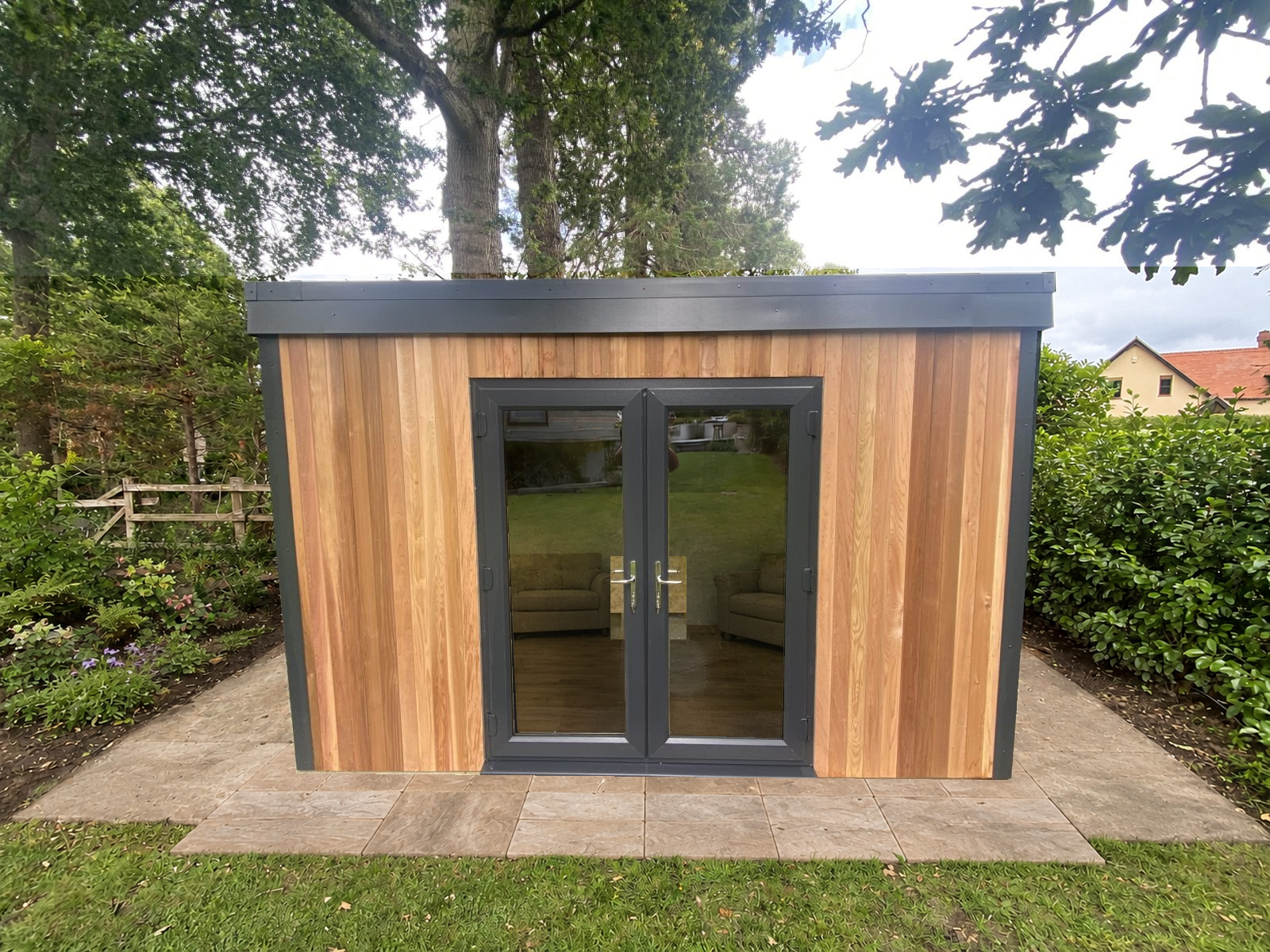

Garden Building

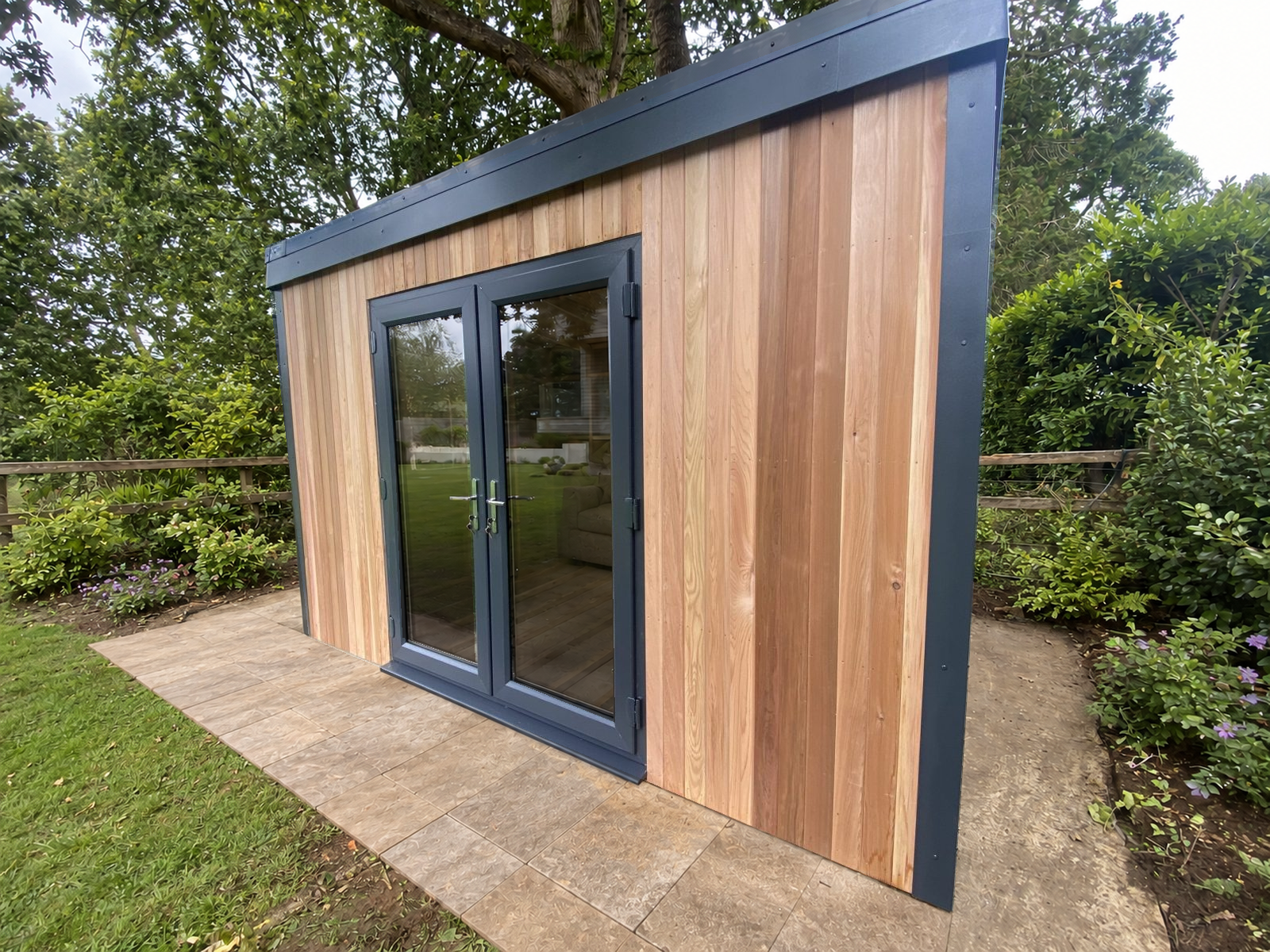

Garden Building - Image 2

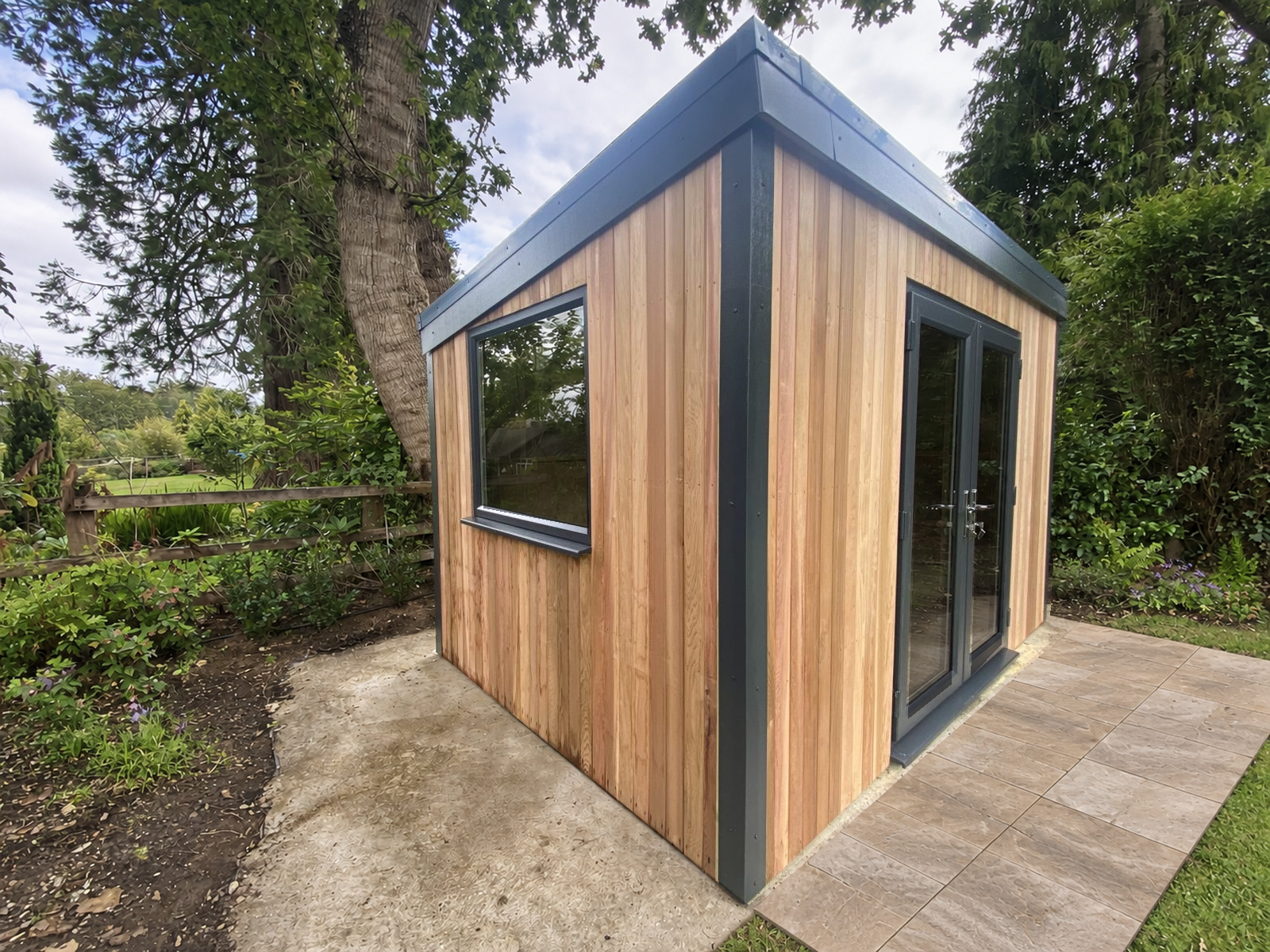

Garden Building - Image 3

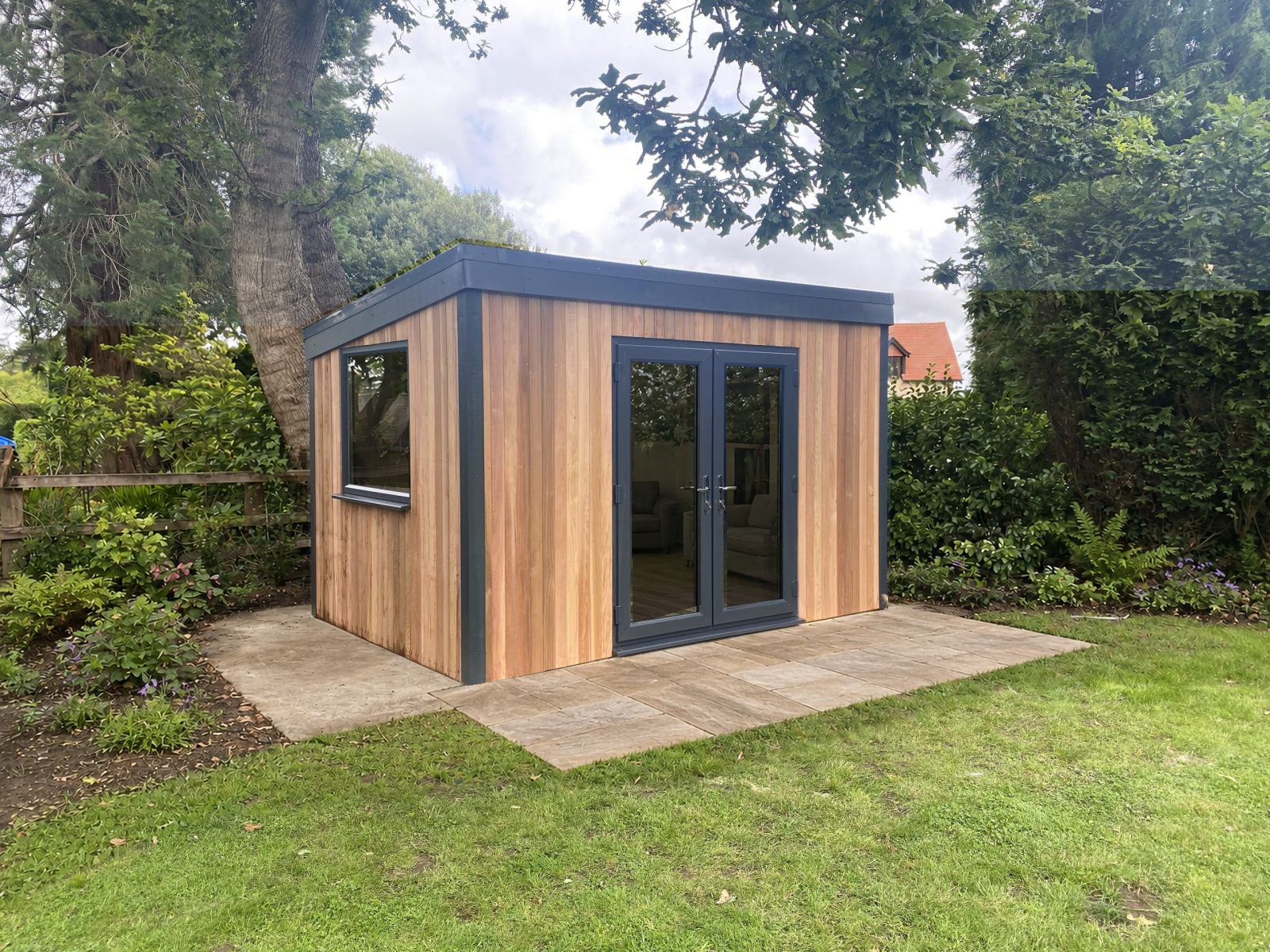

Garden Building - Image 4

Garden Building

2400mm x 3600mm

£7,257.20 inc. VAT

Carcassing Thickness 40mm x 60mm
Cladding Thickness 19mm
Cladding Type Western Red Cedar
Flooring Material 18mm Marine Harwood Ply
Roof Type Pent
Roofing Material EPDM Rubber
Made to order in the UK
Nationwide delivery & installation
Bespoke specifications available
Groundworks available
Electrics available
Design, build & installation
Get a Quote → Call 01948 807000
One team from groundwork to electrics. ShedBox can manage the complete project.
FULL SPECIFICATION

Want to see the construction details?

Everything from framing and flooring to roofing, doors and windows is set out below.

Detailed Specs

Building Dimensions

Building Footprint
2400mm x 3600mm

Roof Type
Pent

Front Height
2500mm

Rear Height
2300mm

Construction Specifications

Frame

C16 CLS timber, 40mm x 60mm.

Roof

EPDM rubber roofing, offering excellent resistance to UV exposure, ozone and ageing. Designed to remain flexible through temperature changes and building movement, with minimal maintenance requirements.

Purlins

C24/26 pressure-tested, dry-graded timber, specified as 4 x 2 inch / 6 x 2 inch sections.

Framing Fixings

Heavy-duty 100mm zinc twin-thread fixings.

Plinth / Ring Beam

60mm x 40mm high-pressure-treated Redwood sleepers, providing substantial floor support and helping protect the base structure.

Exterior Cladding

Custom ShedBox profile, imported Scandinavian Western Cedar half-lap cladding, 19mm thick. Fixed using 40mm ring-shank coil nails, with 18 fixing points along the cladding as specified.

External Roof Boarding

18mm Kronospan OSB3 boarding, 2397mm x 1197mm sheets, included as standard.

Waterproof Panel Membrane

High-density polyethylene breathable membrane providing wind and water resistance while allowing moisture vapour to escape. Sd-value: 0.01m. CE marked; BBA Certificate 90/2548.

Insulation & Interior

Insulation

30mm Celotex insulation applied to the walls and ceiling.

Internal Boarding

9mm moisture-resistant MDF boarding applied to the walls and ceiling.

Heavy-Duty Marine Plywood Floor

18mm marine plywood flooring with pressure-treated load-bearing support timbers.

Internal Trim Kit

Anthracite PVC trimming and timber mouldings applied to internal board joints, corners, windows and doors.

Doors & Windows

PVC French Doors

1 pair – 1700mm (W) x 2000mm (H)
Anthracite Grey | Outward opening

PVC Window

1 x 1000mm (W) x 1000mm (H)
Anthracite Grey | Fixed, non-opening pane

Additional Features

Plinth Bearers

Pressure-treated Redwood bearers, tailor-machined to suit the building dimensions. Designed to raise untreated framing timbers away from ground moisture. Fully supported flooring can be added when this option is selected.

External Corner Trim Kit

Anthracite Grey plastic-coated metal trim with an eased-edge profile, fitted to external corners and roof edges.

Build & Installation

Self Build

Supplied in prefabricated panels with the materials required for assembly. A qualified joiner will explain the assembly process.

Optional Upgrades

Timber Frame Upgrade
Upgrade from the standard 40mm x 60mm frame to 40mm x 76mm timber framing.
Contact ShedBox for pricing.
