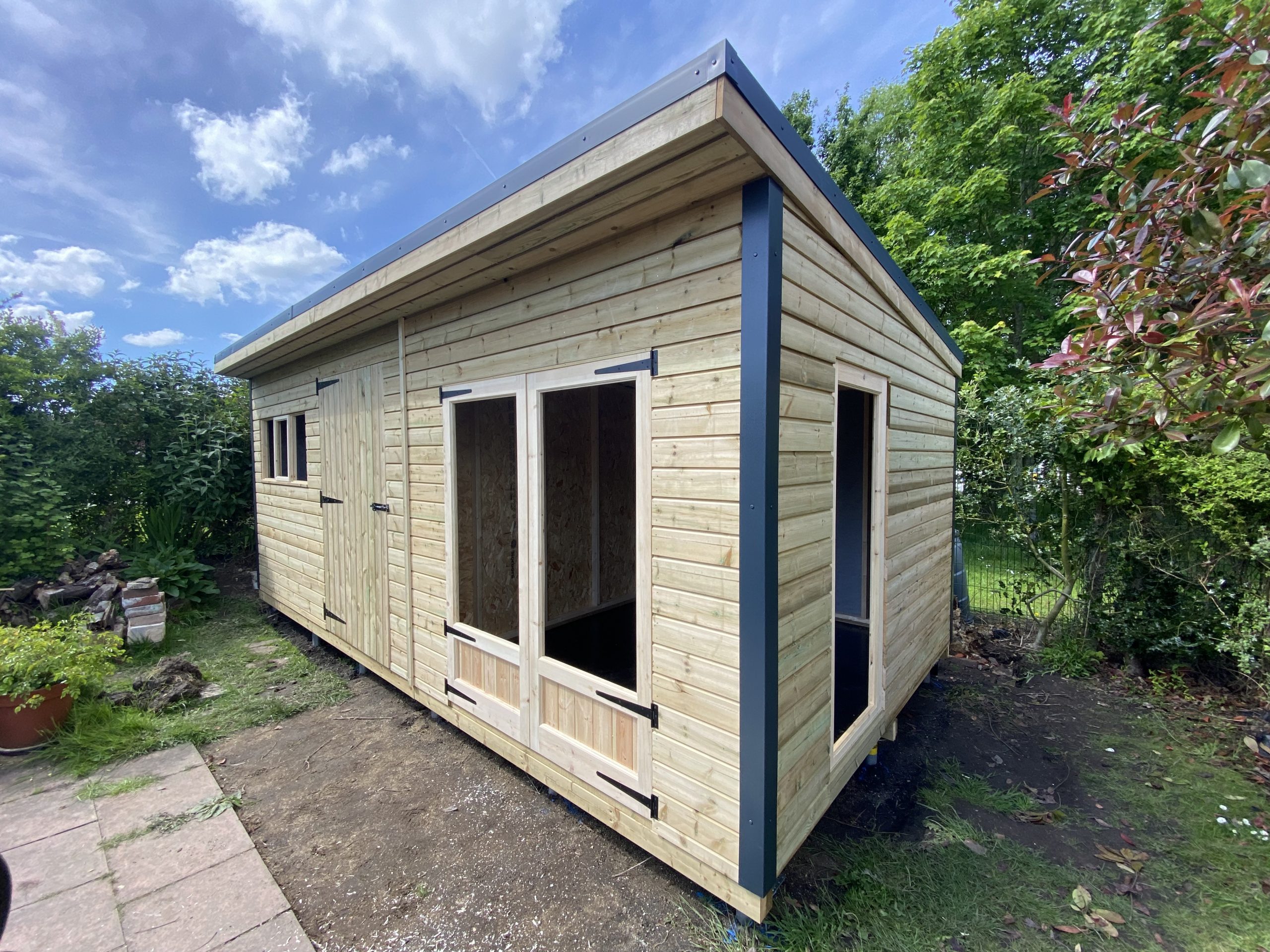

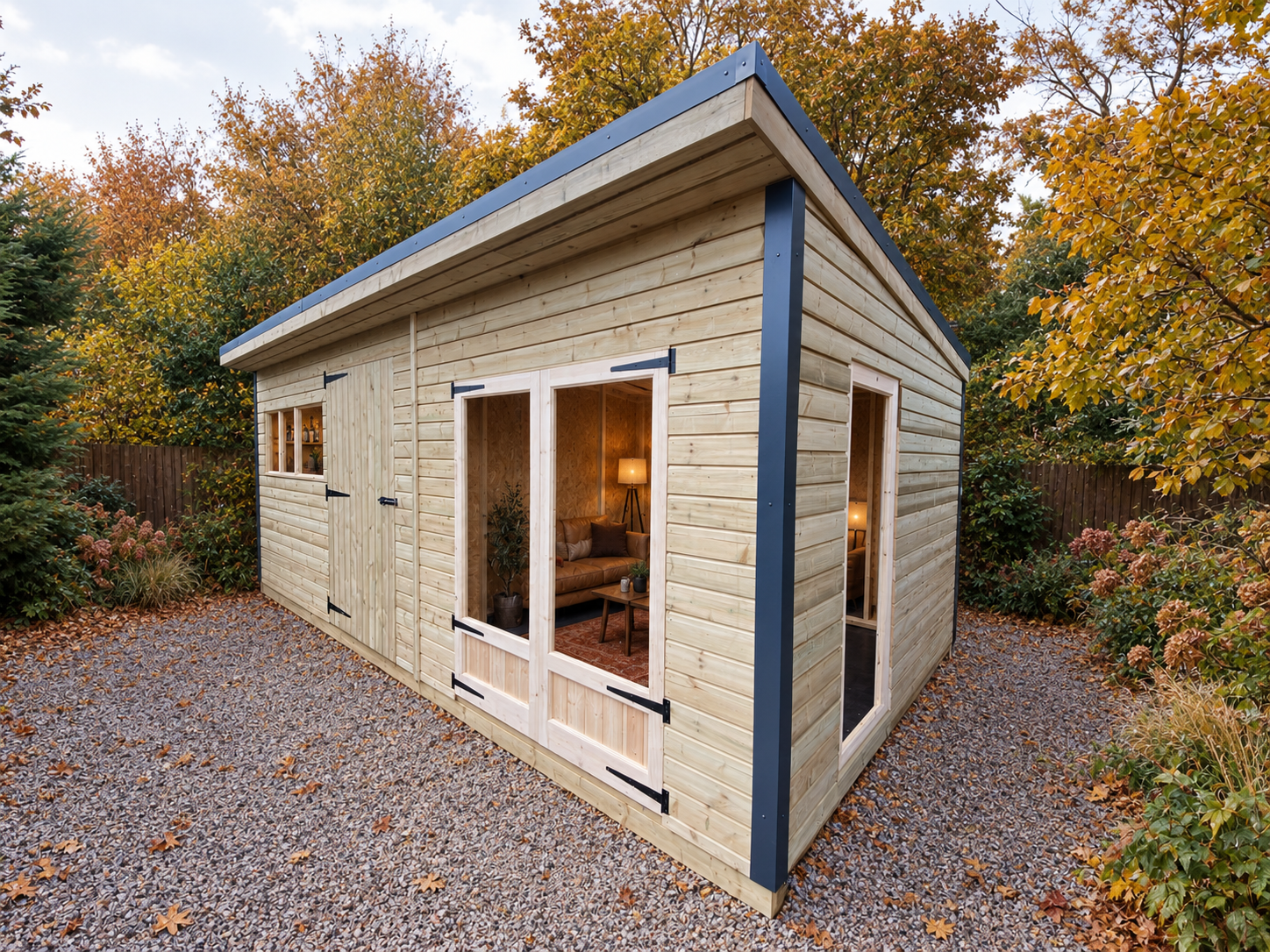

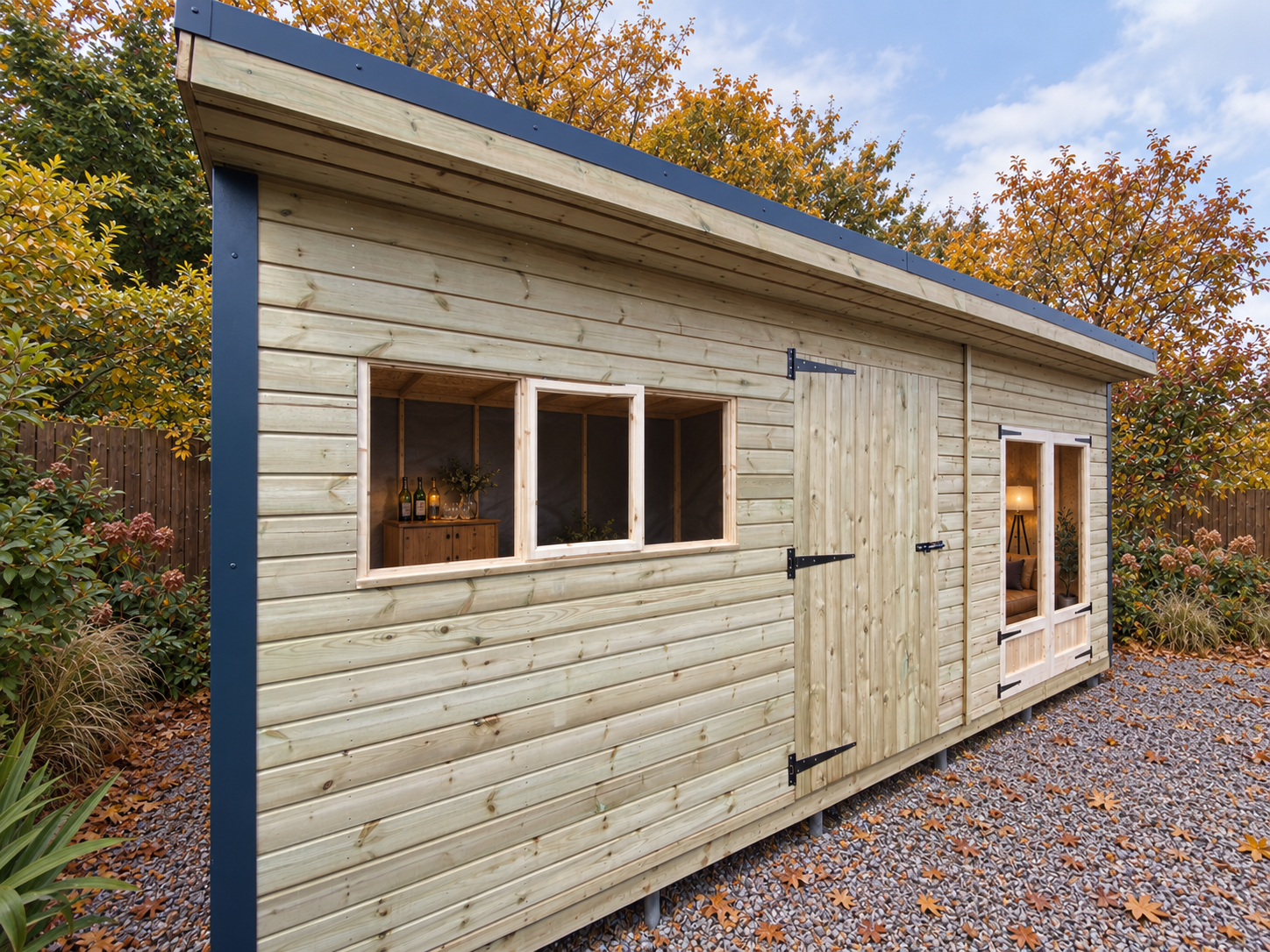

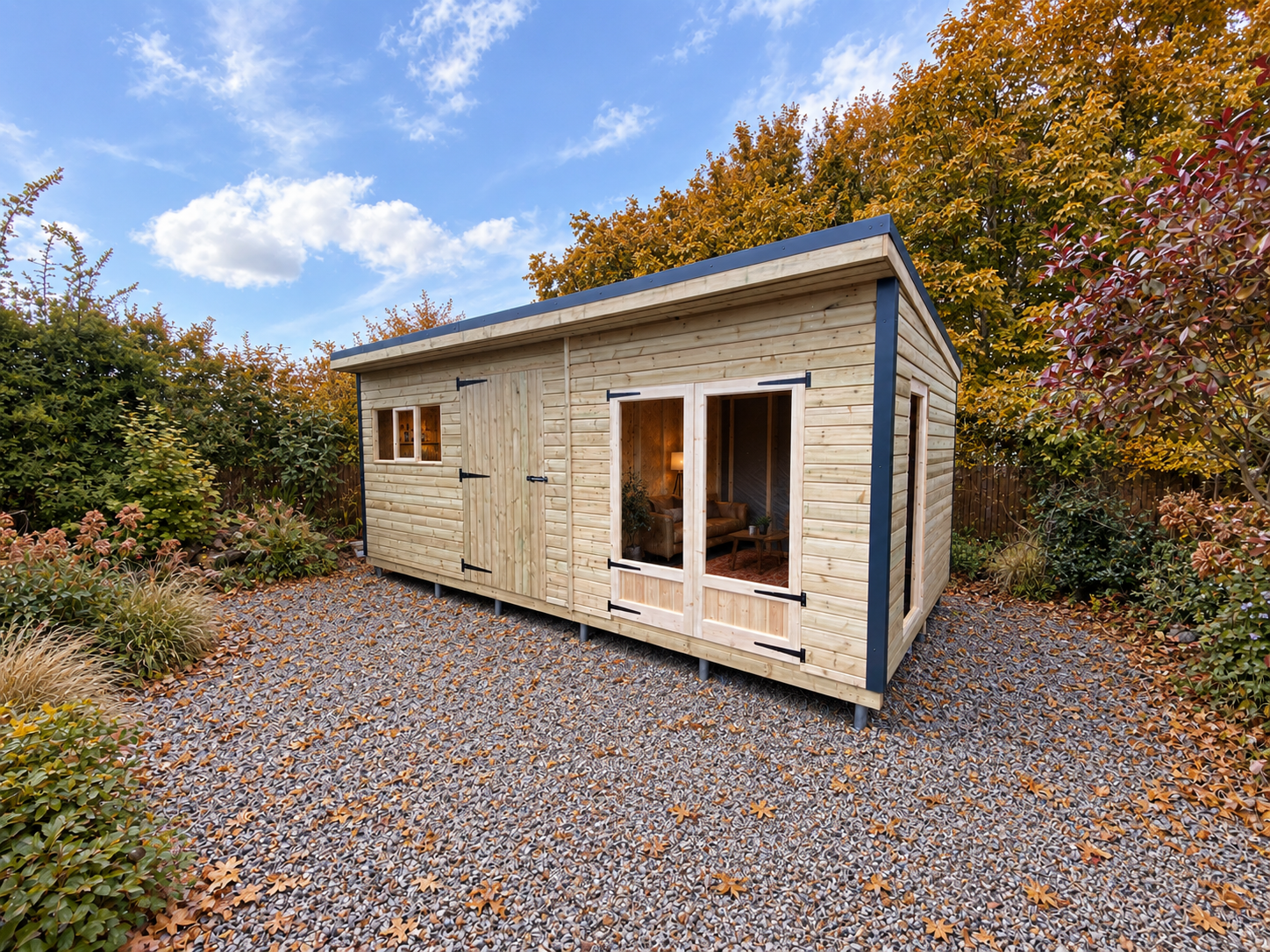

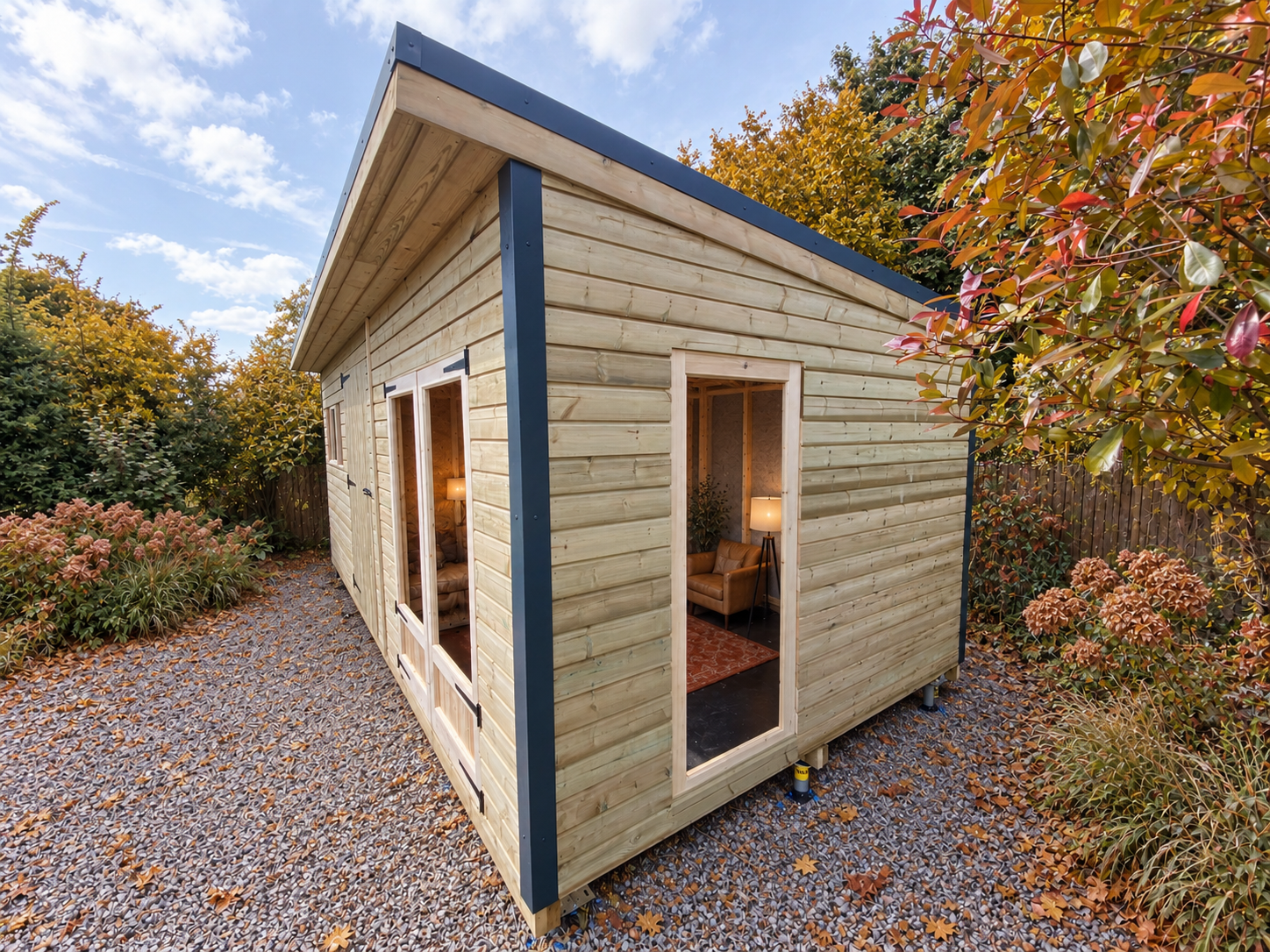

Model | EDGE
£5,778.96 inc. VAT
15mm Redwood cladding option £5778.96
21mm Redwood cladding option £6161.10





Base unit external footprint size - 3000mm x 6000mm with a 300mm Full side overhang with matching Redwood under cladding
Pent Roof - 2500mm at the front sloping to 2300mm at the rear
FRAME - C16 CLS 40MM X 60MM - (see below for alternative options)
ROOF - EPDM RUBBER - Due to its composition, essentially EPDM polymers and carbon black, EPDM offers unmatched resistance to ozone, UV radiation, and ultimately ageing. Remains flexible at temperatures down to -45 degrees and can elongate over 300% to accommodate building movements and temperature fluctuations. Requires little or no maintenance. This feature combined with the inherent durability and competitive installed cost of EPDM roofing systems, result in a very low life-cycle cost.
PURLINS - C24/26 4x2inch (Pressure tested dry graded)
FRAMING FIXINGS - Heavy duty twin thread Zinc 100mm fixings
PLINTH/RING BEAM - 60mm x 40mm” High pressure treated Redwood sleepers to ensure maximum life span and substantial floor support.
EXTERIOR CLADDING - Custom SHEDBOX profile - Imported Scandinavian Redwood Tantalised half-lap - 15mm - Applied with 40mm ring-shank coil nails. 18 points along the clad
WHY REDWOOD? Abundant, renewable and energy-efficient. Redwood is clearly the environmental choice
PLINTH BEARERS - (Ensurers full life of shed by lifting untreated framing timbers off the ground) - Pressure treated red wood ring-bead tailor machined to fit your specific building size. Fully supported floors can now be added to orders with this option selected
ROOF BOARDING (INCLUDED ON ALL ORDERS)- 9mm 2397 x 1197 Kronospan OSB3
HEAVY DUTY MARINE PLY FLOOR - Tanalised load bearing support timbers (18mm boarding as standard)
WATERPROOF PANEL MEMBRANE - Made of high density polyethylene fibres for long-term protection against the elements. This durable, lightweight breathable membrane is wind tight and water resistant and designed for use in new build, refurbishment or extension projects. Highly permeable to water vapour – can be fixed directly to insulation (Sd-value: 0.01m). Enhances the airtightness of the construction / Long-term reliability / CE marked / Fully BBA, IAB, and UKAS approved / BBA certificate: 90/2548
FULLY FRAMED SINGLE ACCESS DOOR (850mm) - Complete with all heavy duty irons inside and out. Galvanised then power-coated in Jet Black
TIMBER SUMMER HOUSE DOORS - Model SQ3S - X1 Pair - (Machine regulated & morticed jointed) - GLASS NOT INCLUDED
TIMBER WINDOWS - Model WF3 - X1 and Model WFCS - X1 - (Machine regulated & morticed jointed) - GLASS NOT INCLUDED
ROOF SEAL KIT - Seals roof sheets to panel tops (eves) Foam inserts that are machined in 1meter lengths to fit the roof profile perfectly. Ideal for keeping heat in and finishing off the overall look.
FLOOR/PLINTH SEAL KIT - Seals your pressure treated plinth to your concrete base. Includes a waterproof gap sealant (clear), gun for application and re-useable sealant edging kit.
HIGH FLOW GUTTER KIT - (High flow Black) Will prevent rain water collecting around the base of the shed thus keeping water damage to a minimum around the base. To run along the rear only.
EXTERNAL CORNER TRIM KIT - Plastic coated tin with eased edge profile to be applied to corners and external roof edges - Anthracite Grey
SELF BUILD - The building would arrive in pre-fabricated panels with all the materials required to complete and would be delivered by one of our qualified joiners who would go through the full erection process with you. All panels & apex's are tradesman built with exceptional quality and workmanship.
DELIVERY NOT INCLUDED, PLEASE SEE BELOW:
Delivery is charged at £2.50 per mile, one way from our Shropshire workshop to your address. Once you have placed your order you will need to send us a message with your full address, post code, contact telephone number and email address, we will then notify you of the additional delivery charge.
Please be aware that as our workshop is based in Shropshire therefore they may be a surcharge if your location requires our driver to stay overnight due to driving restrictions.
All of our buildings are made to order therefore the lead time from order confirmation to delivery is currently 4 weeks
ALTERNATIVE SPECIFICATION OPTIONS
External Redwood cladding options:
- 15mm - Included with this building
- 21mm
- 28mm
Carsassing frame options:
- 40mm x 60mm - Included with this building
- 40mm x 76mm -
(If you would like to upgrade your building to any of the above options please contact us).
Additional information
Carcassing Thickness | 40mm x 60mm |
---|---|
Cladding Thickness | 15mm |
Cladding Type | Redwood |
Flooring Material | 18mm Marine Harwood Ply |
Personnel Door Width | No Personnel Door |
Roof Type | Pent |
Roofing Material | EPDM Rubber |
